Key Features

• AI-Driven Imaging Intelligence: Built-in human pose estimation and camera-guided positioning simplify accurate X-ray acquisition, improving safety and reducing positioning time for enhanced clinical efficiency.
• Dose Optimization & Patient Safety: Integrated dose control and advanced AEC (Automatic Exposure Control) ensure optimized exposures without additional ion chambers or paddles, even in free positioning scenarios.

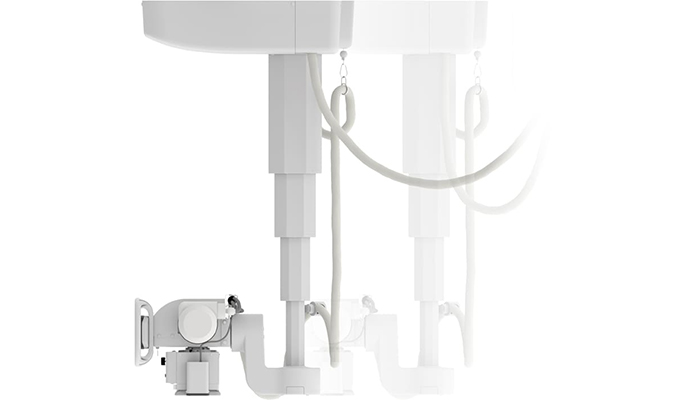

• Smart Hardware Design: Features ceiling-suspended tube support with 66% improved maneuverability, ring-shaped handle with piano key switches for ergonomic control, and dual window angulation display for accurate incidence angle alignment.
• All-in-One Console: Centralized LCD console (LCD-80SD) allows seamless generator control, exposure setting, and operational monitoring from a single interface.
• Next-Gen Wireless Detectors: Lightweight, waterproof detectors with internal battery and image storage, usable within the system or standalone for maximum flexibility.
• Advanced Imaging Software: Canon's intelligent Clear-IQ Engine (AiCE) uses deep learning to reduce image noise while preserving diagnostic details for superior image quality.

System Components & Capabilities

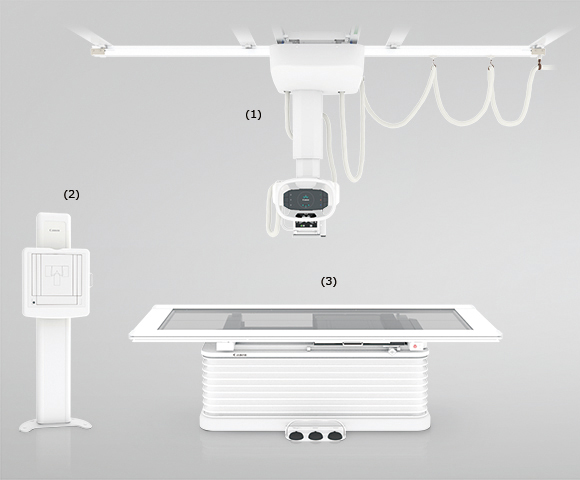

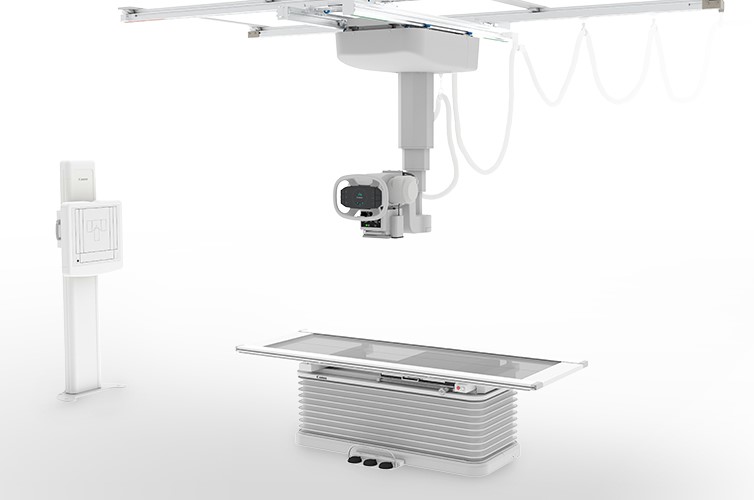

• Modular System Design: Includes DSTX-A10 ceiling tube, BS-02A vertical bucky stand, and choice of EBT-100A elevator-type or FBT-10A floating-top bucky table for versatile configurations.
• Auto-Tracking Bucky: Enables smooth synchronization between tube and detector positioning for streamlined workflow and consistent imaging results.
• Detachable FPD Grid: Features scatter correction option ideal for extremities and pediatrics, allowing dose reduction when grid is removed for optimal patient safety.
• Multiple Generator Options: Available in three configurations: KXO-80SD (80 kW / 150 kV / 800 mA), KXO-50SD (50 kW / 150 kV / 630 mA), and KXO-32SD (32 kW / 150 kV / 500 mA) to match clinical needs.

Software & Connectivity

• DICOM Compliance: Fully DICOM-compliant with automated structured dose reporting for comprehensive clinical documentation and regulatory compliance.
• Unified User Interface: Common Canon UI across all DR systems minimizes training time and ensures consistent operation across different equipment.
• Intelligent Protocol Checking: Camera-based patient positioning preview ensures protocol consistency and reduces retakes through intelligent verification.
• Enhanced Workflow Tools: Edge enhancement options and customizable software configurations optimize workflow efficiency for diverse clinical requirements.

Radrex i5 / Flex Edition represents the next generation of digital radiography, combining AI-driven intelligence with ergonomic design and advanced imaging technology to deliver superior diagnostic quality while prioritizing patient safety and clinical efficiency.
