AeroDR UXE / UX

AeroDR UXE / UX
AeroDR UXE / UX
AeroDR UXE / UX

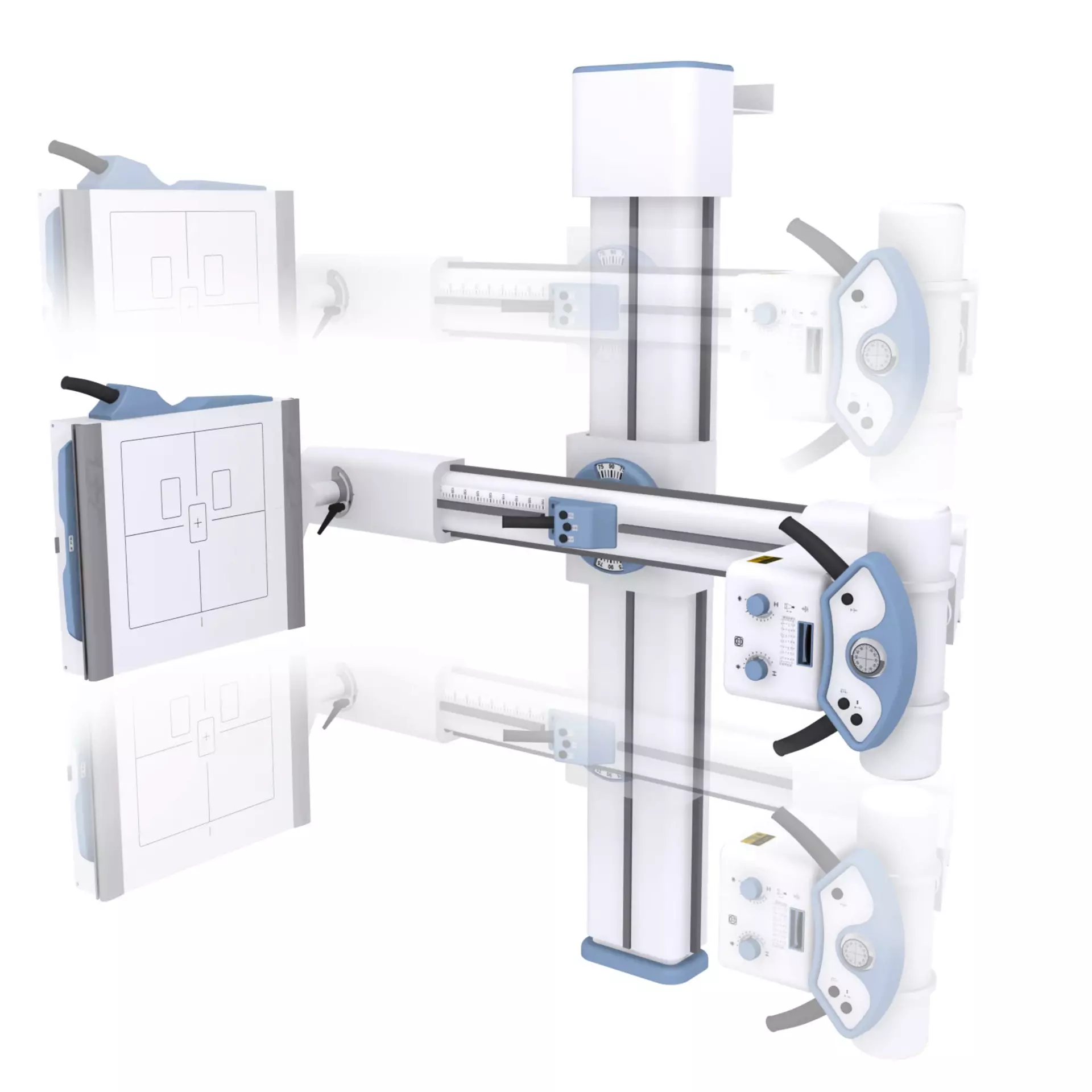

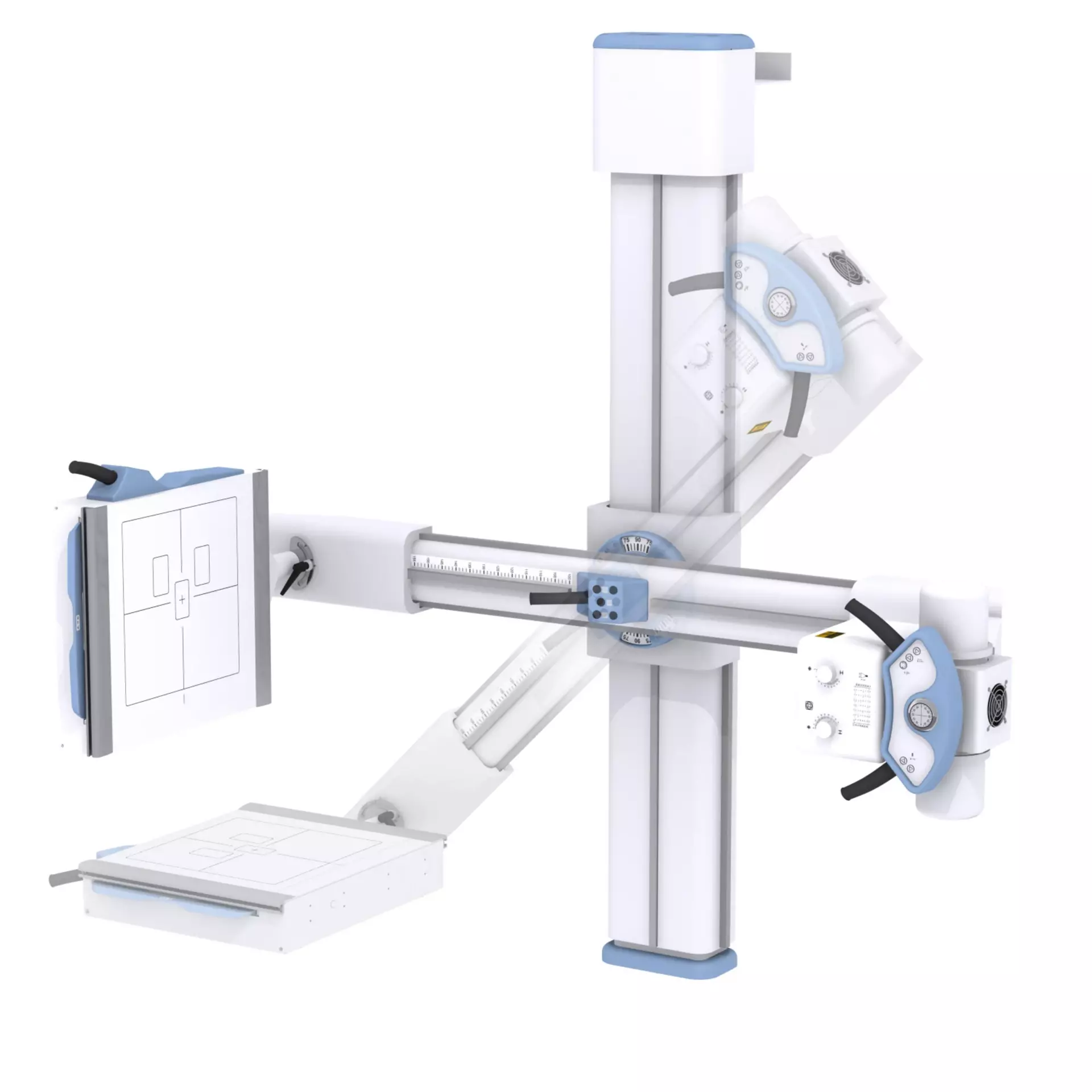

Compact U-Arm Digital X-Ray System

AeroDR UXE (with changing SID) and AeroDR UX (with fixed SID) are space-efficient U-arm x-ray solutions designed for maximum clinical flexibility. Their compact build and intelligent positioning features make them ideal for high-traffic environments such as trauma rooms, emergency departments, and general radiography settings. These systems support AP/PA, lateral, and oblique projections with excellent image quality and user-friendly controls.

Key Features
  • Space-Saving Design: Compact U-arm system ideal for clinics and hospitals with limited space. Easily fits in rooms where ceiling- or floor-mounted systems are not viable.
  • Flexible Installation & Use: Minimal components allow for quick and easy installation with smooth positioning for upright or table-based examinations.
  • Software Options: CS-7 Console offers advanced image processing with Realism algorithms, Intelligent Grid, and stitching tools. ImagePilot Console provides an all-in-one workstation for acquisition, mini-PACS, backup, and orthopedic tools.
  • Detector Choices: Supports Konica Minolta's advanced FPDs including AeroDR3 1417 SL, AeroDR3 1717 HL, AeroDR3 1012 HQ, and AeroDR NS 1417 (cost-effective option).
  • Glass-Free Flat Panel Detectors: Antibacterial exterior for hygiene and durability with lightweight and robust design with AeroStorage support. Features 100 μm resolution with rapid charging and unique grip design.
  • User-Friendly Operation: Manual movement of SID, bucky tilt, tube rotation, and angulation via intuitive button control. Ideal for mobile and standing-position exams.
Technical Specifications
  • Movement and Controls: Manual vertical movement, SID adjustment, bucky positioning, and angulation control.
  • X-ray Tube: 140 kHU capacity for reliable performance.
  • Generator Power: Available in 40 kW or 50 kW options.
  • Console Display: 15-inch touchscreen for intuitive operation.
  • Console Software: Compatible with CS-7 or ImagePilot software platforms.
  • Supported Detectors: AeroDR3 1417 SL, AeroDR3 1717 HL, AeroDR3 1012 HQ, and AeroDR NS 1417.
Why Choose AeroDR UXE/UX?
  • Cost-Effective Performance: Offers a perfect balance of cost-efficiency, performance, and compactness.
  • Customizable Solutions: Customizable software and detector combinations based on clinical needs.
  • Streamlined Workflow: Streamlined workflow for high-volume radiography environments.

The AeroDR UXE/UX systems are ideal solutions for facilities requiring compact, flexible, and efficient digital radiography capabilities without compromising on image quality or clinical versatility.
