Key Features

• Desktop-Sized Design: Lightweight computed radiography unit with compact dimensions of 510 × 610 × 355 mm, weighing only approximately 28 kg.
• High Throughput: Processes up to 60 plates per hour, ensuring efficient workflow in busy clinical environments.
• Dual Resolution Modes: Flexible imaging with 87.5 μm and 175 μm sampling pitch options, supporting maximum resolution of 4020 × 4892 pixels.

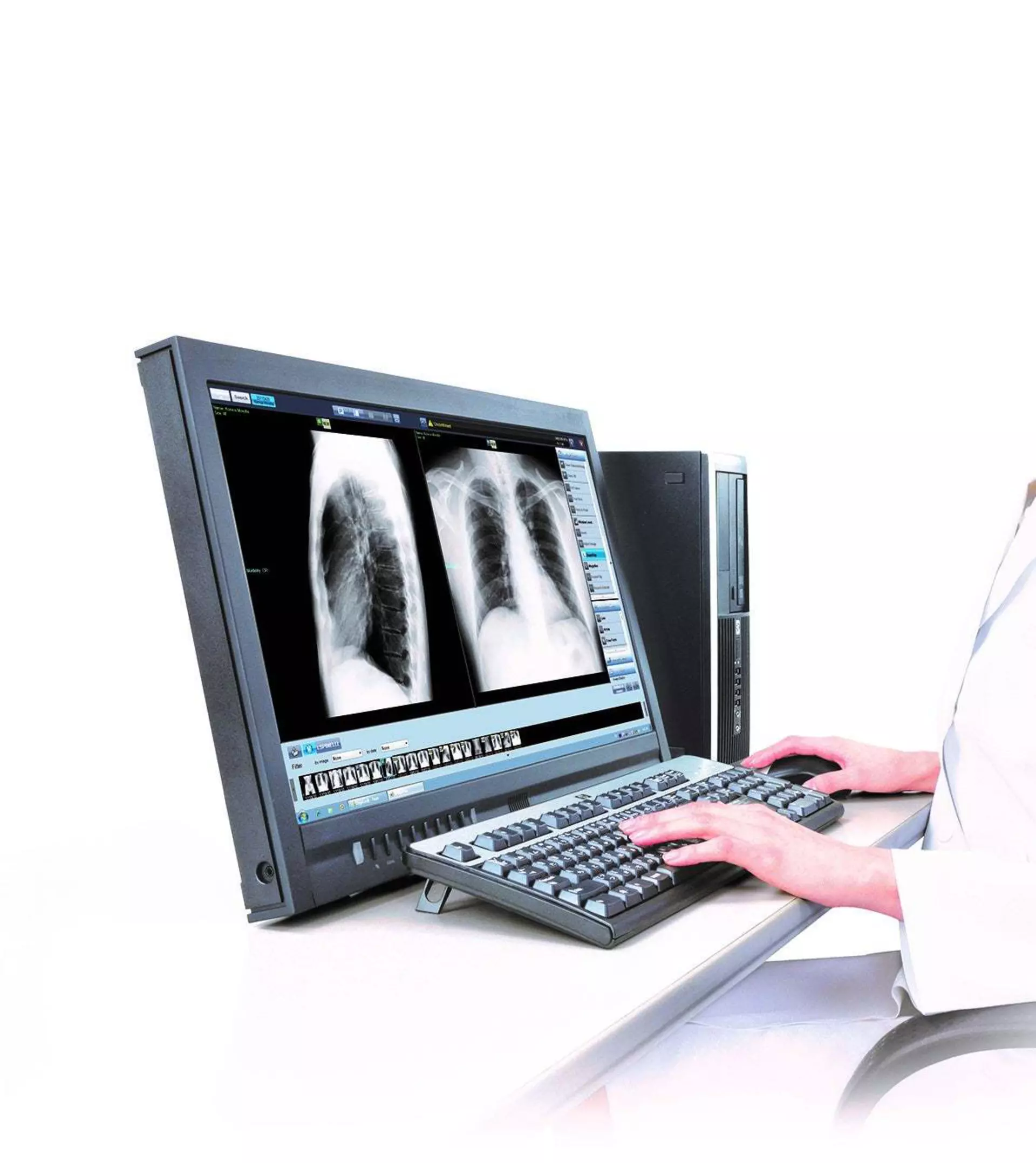

• Integrated ImagePilot Software: Comprehensive software suite with acquisition, review, distribution, and archive functions for complete workflow management.
• Energy Efficient: Environmentally friendly operation with only 100 VA power consumption during operation and 20 VA in standby mode.
• Exceptional Image Quality: Features Integral Processing algorithm with 4096 levels (12-bit) gradation for superior diagnostic imaging.

Technical Capabilities

• Multi-Format Support: Compatible with cassette sizes including 14×17", 14×14", 11×14", 10×12", 8×10", 18×24 cm, 24×30 cm, and 15×30 cm.
• User-Friendly Interface: Multi-touch display support enables seamless user control and intuitive operation for enhanced productivity.
• Compatible Systems: Works with REGIUS CASSETTE RC-300 series and REGIUS PLATE FP-1S series for reliable, consistent imaging.
• Clinical Environment Ready: Designed to operate in 10–30°C temperature range with 15–80% RH (non-condensing) for versatile installation.

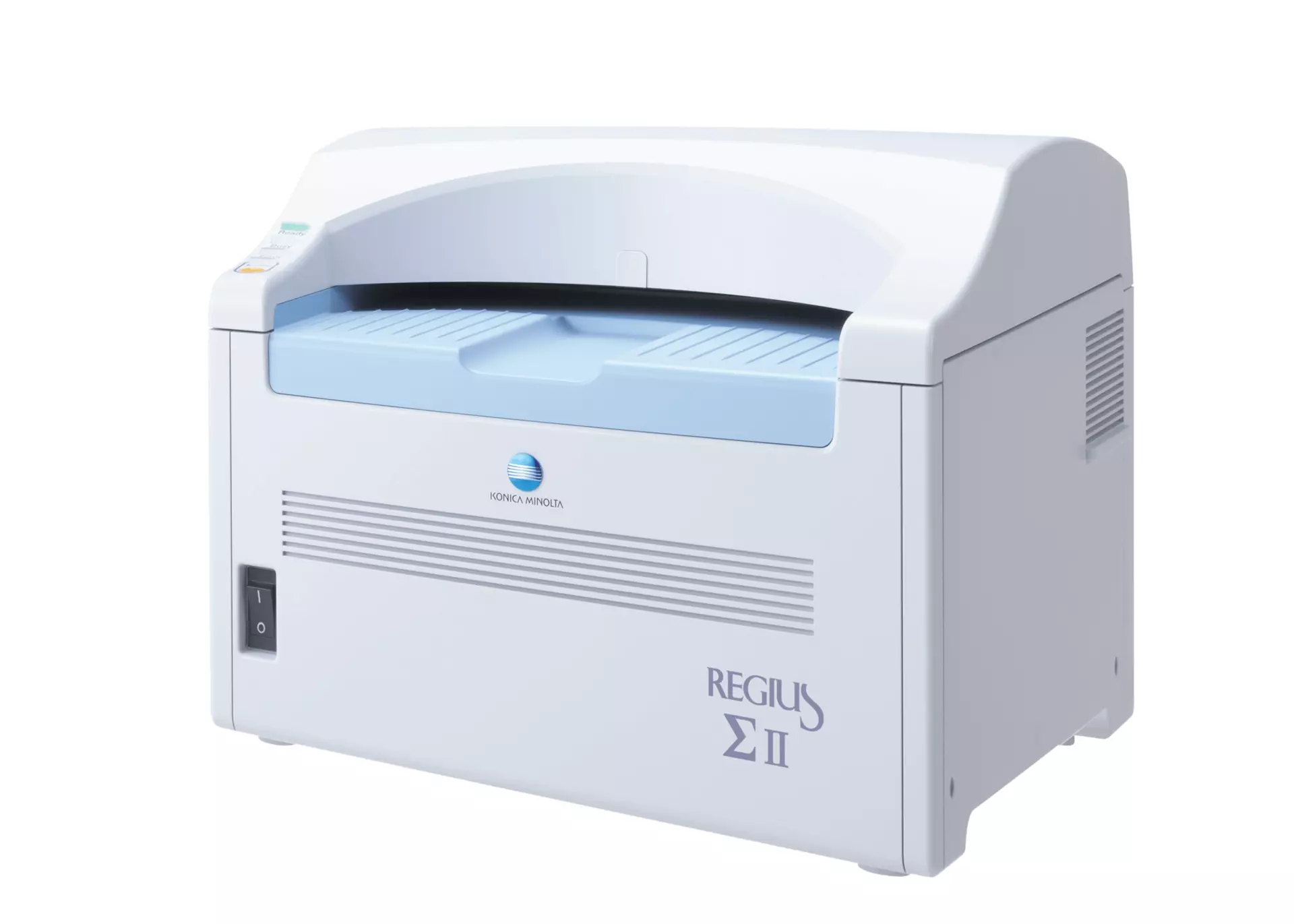

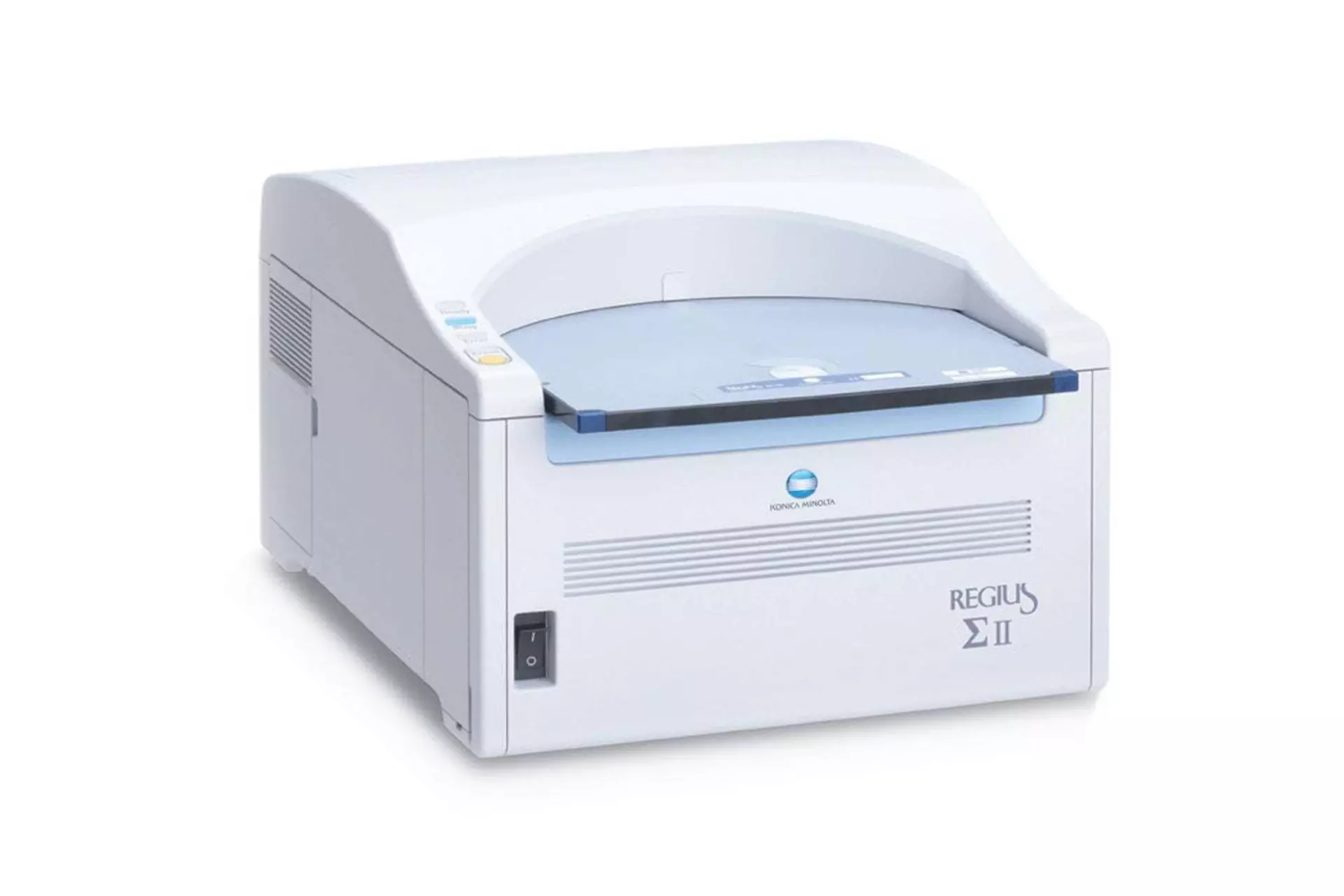

Regius CR Sigma 2 combines compact design with high-performance imaging capabilities, offering clinics and imaging centers an energy-efficient, space-saving computed radiography solution without compromising on diagnostic quality or workflow efficiency.
